ER 4047 (ALSi12) Aluminium Welding Wire

Aluminium-silicon filler metal for MIG and TIG welding of aluminium-silicon alloys

Chemical Designation: ALSi12
Standard: AWS A5.10, GB/T10858-2023

Request a Quote

Chemical Composition (%)

Si	Fe	Cu	Mn	Mg	Zn	Al	Be	Others
								Each	Total
11.0-13.0	≤0.8	≤0.30	≤0.15	≤0.10	≤0.20	Rest	≤0.0003	≤0.05	≤0.15

Mechanical Properties

Tensile Strength (MPa): ≥170
Yield Strength (MPa): ≥80
Elongation (%): ≥4

Features

Contains 12% silicon, providing excellent fluidity during welding
Lower melting temperature helps minimize distortion in thin materials
Good for filling wide or irregular gaps and reducing the risk of hot cracking

Available Sizes

Welding wire: 1.2/1.6/2.0/2.4/3.0/3.2/4.0/5.0/6.0mm
Spool: D300 (9kg), D270 (7kg), D200 (2kg), D100 (0.5kg)

Applications

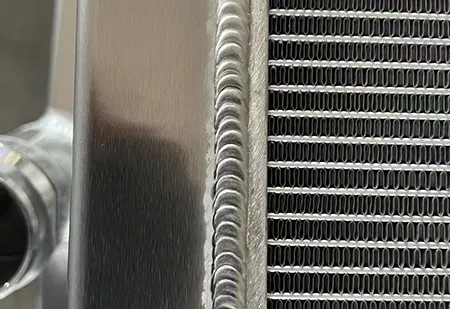

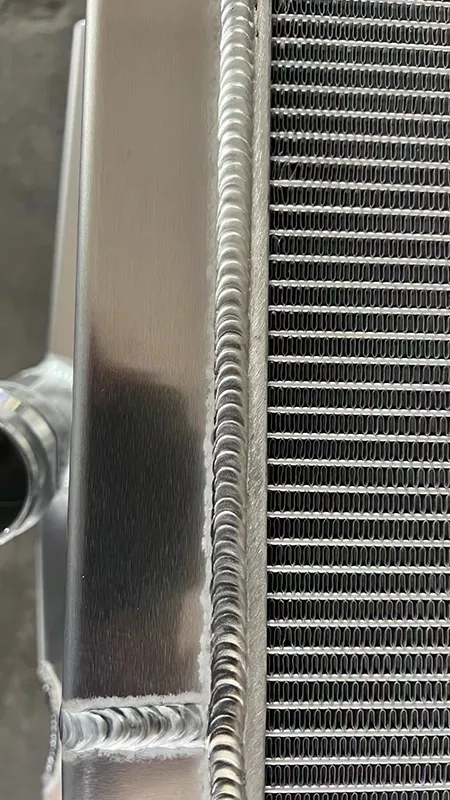

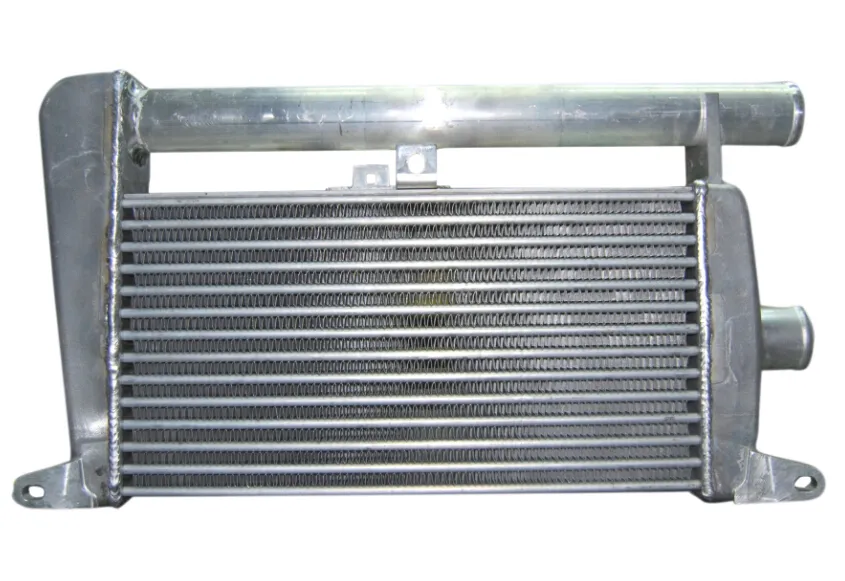

Automotive aluminium radiator, intercooler, and heat exchanger welding
Window frame assembly for aluminium passenger buses
Bicycle frame fabrication

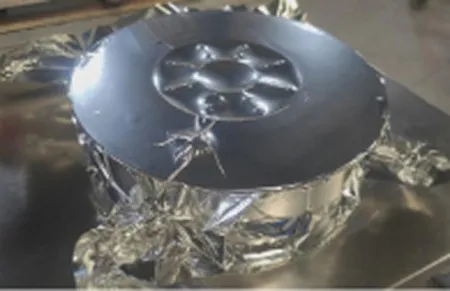

General aluminium part repair and maintenance

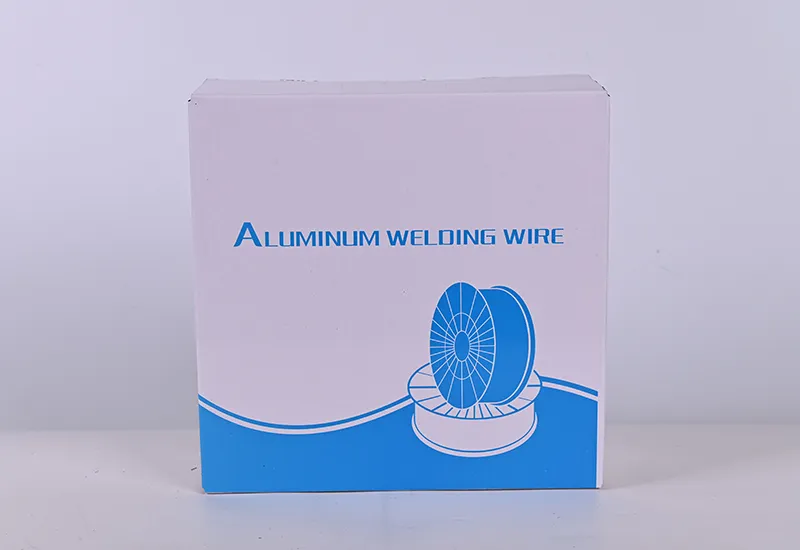

Packaging

MIG wire diameter: 0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm

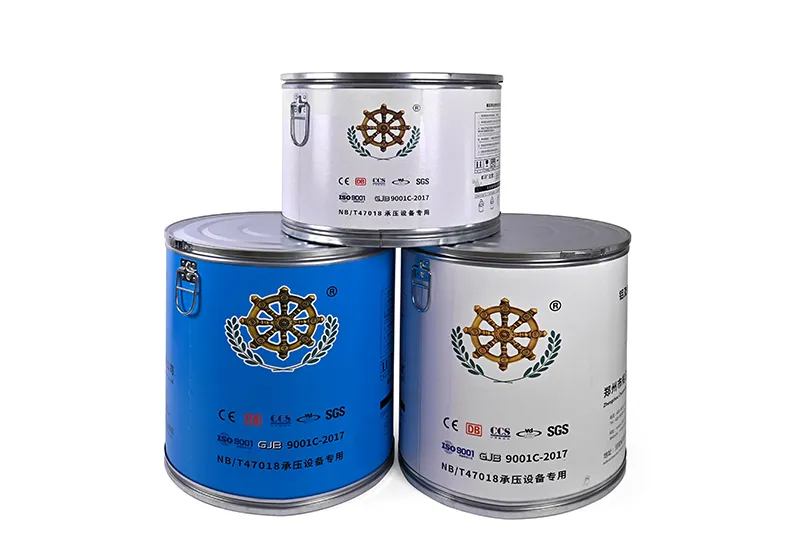

Package: D300 (9kg/spool), D270 (7kg/spool)

MIG wire diameter: 1.2mm, 1.6mm
Package: drum D660 (100kg/drum)

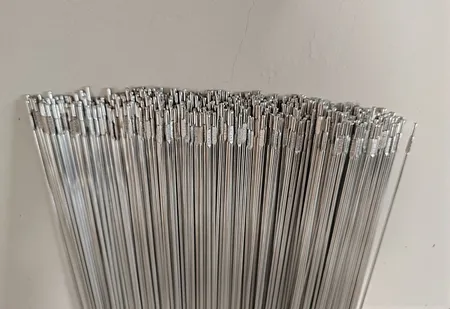

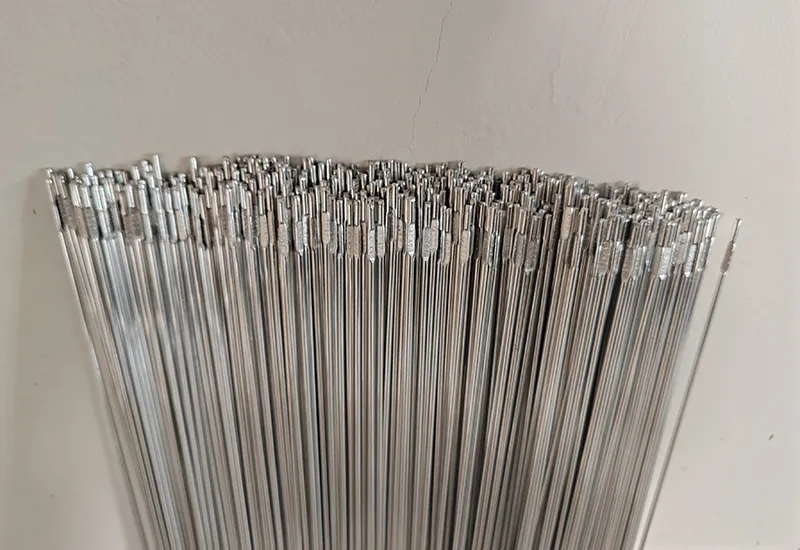

TIG wire diameter: 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm
Package: 1000mm length (10kg/box)

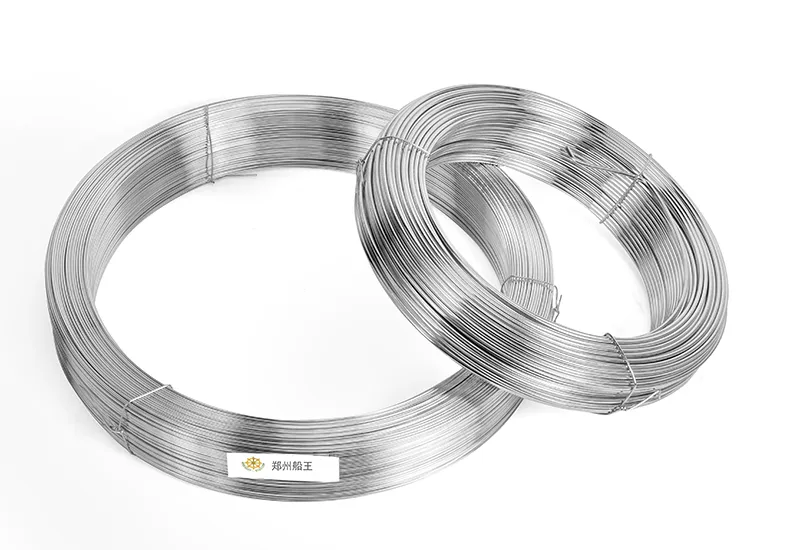

TIG wire diameter: 1.6mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm
Coil inner diameter: D450mm, D300mm
Package: 10-17kg/coil

Recommended Welding Method

For optimal results, this type of welding wire is commonly used in brazing with an oxy-fuel torch. Pair it with 201 aluminium flux to enhance flow and bonding quality.
