ER 6063 Aluminium Welding Wire

Welding Consumables

ER 6063 Aluminium Welding Wire

Aluminimum-magnesium-silicon filler metal for MIG and TIG welding of 6000 series base alloys
  • Standard: GB/T3190-2020
Request a Quote
Chemical Composition (%)
Si Fe Cu Mn Mg Cr Zn Ti Al Others
Each Total
0.20-0.6 ≤0.35 ≤0.1 ≤0.1 0.45-0.9 ≤0.1 ≤0.1 ≤0.1 Rest ≤0.05 ≤0.15
Features
  • Composed mainly of magnesium and silicon, this aluminium welding wire provides good weldability and formability
  • Excellent surface treatment compatibility, suitable for anodizing and coating to enhance corrosion resistance and appearance
  • Offers stable arc performance and smooth weld finishes, ideal for precision work in decorative or structural applications
Available Sizes
  • Welding wire: 0.8/1.0/1.2/1.6/2.0/2.4/3.0/3.2/4.0/5.0/6.0mm
  • Spool: D300 (9kg), D270 (7kg)

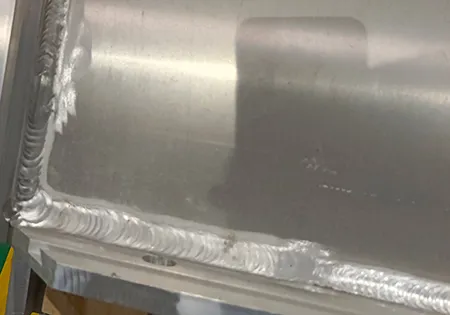

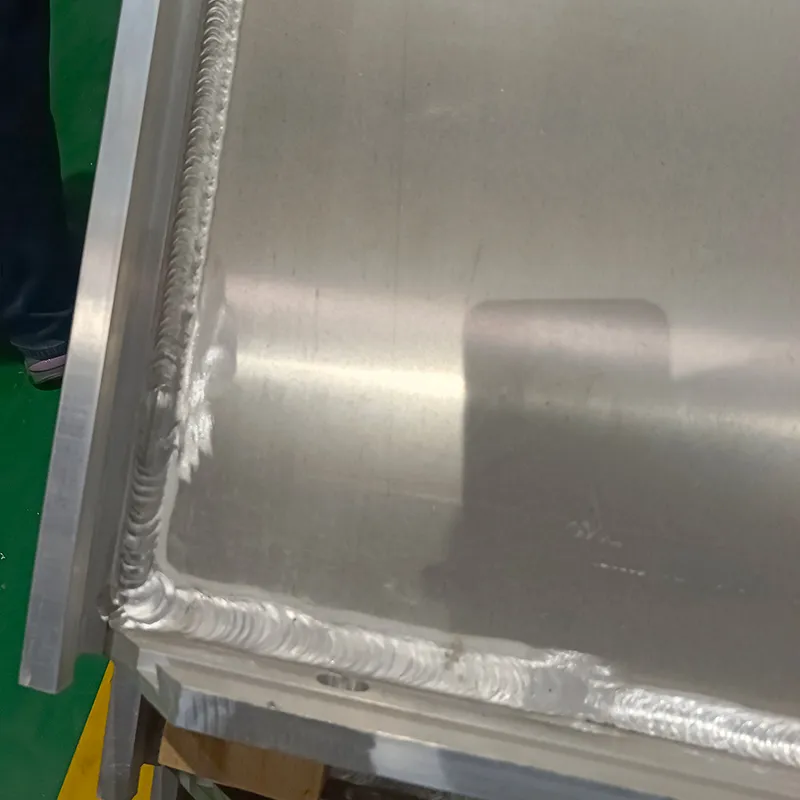

Applications
  • Suitable for welding aluminium sheets and profiles, including grades like 6061, 6063, and 1100
  • Commonly used in construction for doors, windows, scaffolding, formwork, and aluminium ladders
  • Also applied in manufacturing bicycles, aluminium furniture, lifts, and fences
Applications
Packaging

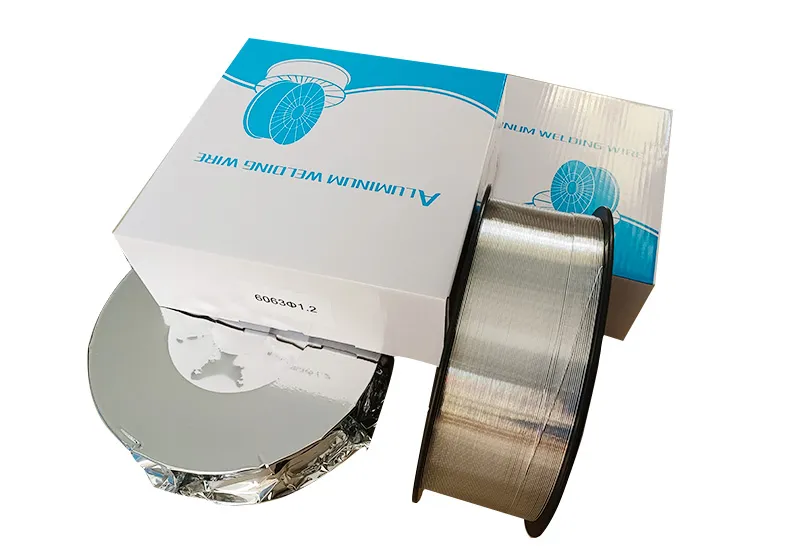

  • Spooled welding wire
    Spooled welding wire

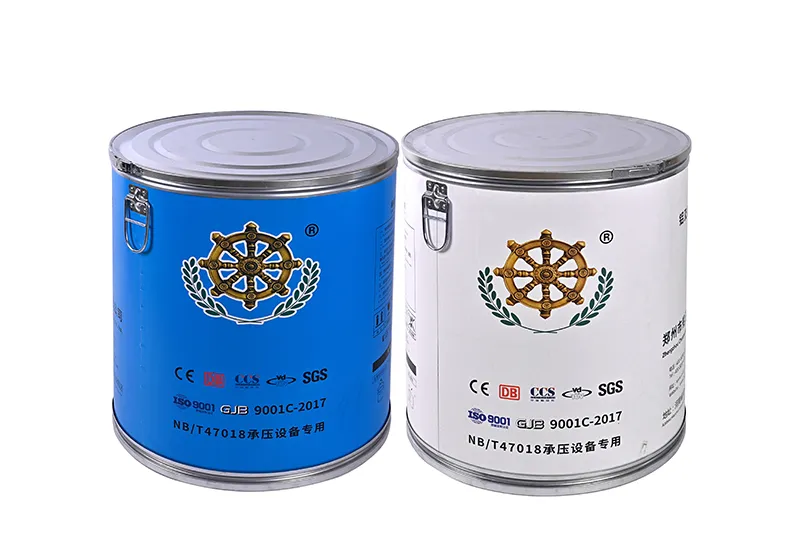

  • Drum packaged welding wire
    Drum packaged welding wire

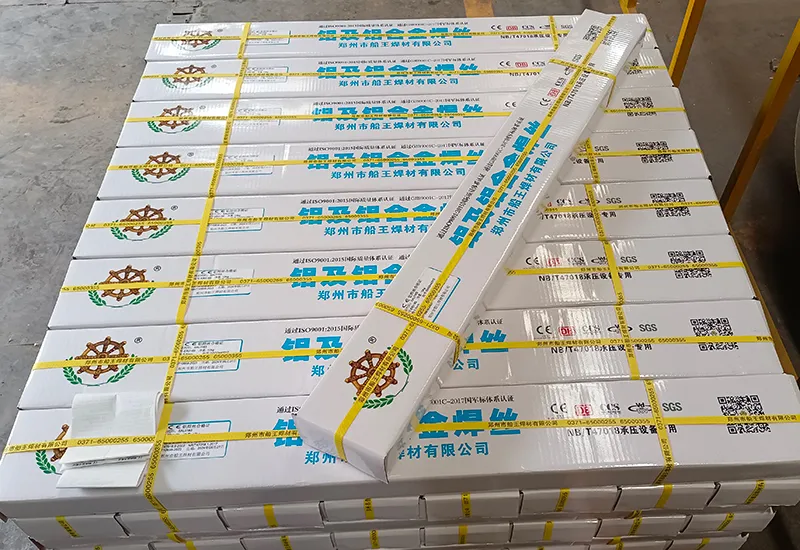

  • Straight welding wire
    Straight welding wire

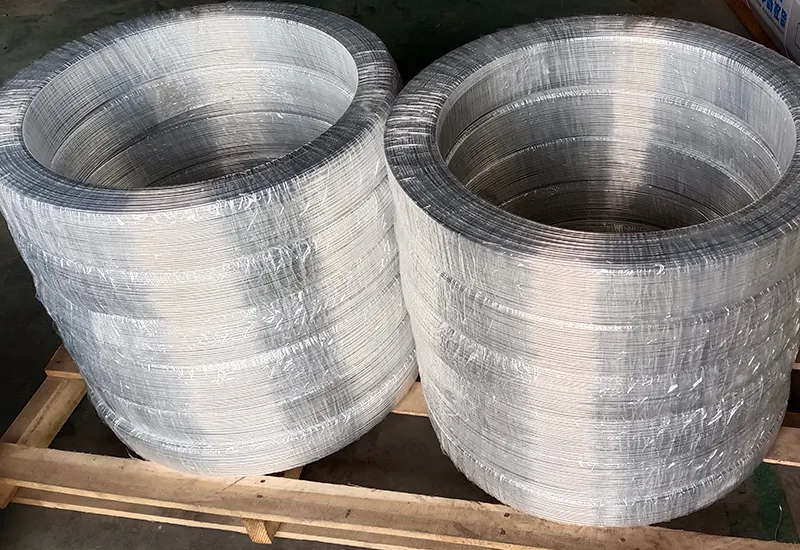

  • Coiled welding wire
    Coiled welding wire
Packaging
  • MIG wire diameter: 0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm
  • Package: D300 (9kg/spool), D270 (7kg/spool)
Packaging
  • MIG wire diameter: 1.2mm, 1.6mm
  • Package: drum D660 (100kg/drum)
Packaging
  • TIG wire diameter: 1.6mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm
  • Package: 1000mm length (10kg/box)
Packaging
  • TIG wire diameter: 1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm
  • Coil inner diameter: D450mm, D300mm
  • Package: 10-17kg/coil
Recommended Welding Method

Use with AC current and pure argon shielding gas for best results. ER 6063 wire works well in both MIG and TIG welding applications. Always clean the joint area thoroughly before welding to avoid moisture, oil, or contaminants that could affect arc stability or weld quality.

Recommended Welding Method
Why Choose Us
Why Choose Us
  • In-Depth Experience
    1. We’ve specialized in aluminium and titanium welding wire for over 35 years.
    2. Our manufacturing facility includes 6 processing workshops, over 60 production machines, and more than 50 production lines.
    3. We’ve supplied products and services to over 5,000 clients in 15 countries.
  • Premium Quality
    1. We are certified by ISO9001:2015 and GJB9001C-2017.
    2. The welding wires we offer are approved by CE, DB (German Railway), CCS (China Classification Society), VdTÜV (Germany), and SGS.
    3. A CNAS-accredited lab provides technical support and welding process evaluation.
  • On Time Delivery
    1. Customized packaging option are available with delivery lead times between 3 to 15 days
    2. We keep 280 tons of finished inventory and have an annual production capacity of 3,000 tons.
    3. Our technical team offers free welding consultations, tailored solutions, and 24-hour after-sales service.
