ER 5B06 Aluminium Welding Wire

Welding Consumables

ER 5B06 Aluminium Welding Wire

Aluminium-magnesium filler metal for MIG and TIG welding of aluminium-magnesium alloys
  • Standard: GB/T3190-2020
Request a Quote
Chemical Composition (%)
Cu Si Fe Mn Mg Zn Al Ti Be Others
Each Total
≤0.1 ≤0.4 ≤0.4 0.5-0.8 5.8-6.8 ≤0.2 Rest 0.10-0.30 0.0001-0.005 ≤0.05 ≤0.1
Features
  • Contains 5.8–6.8% magnesium, providing improved mechanical properties over standard aluminium-magnesium alloys.
  • Offers enhanced corrosion resistance, allowing stable performance in demanding environments.
  • Designed to maintain durability and strength over time, even under long-term use.
Available Sizes
  • Welding wire: 0.8/1.0/1.2/1.6/2.0/2.4/3.0/3.2/4.0/5.0/6.0mm

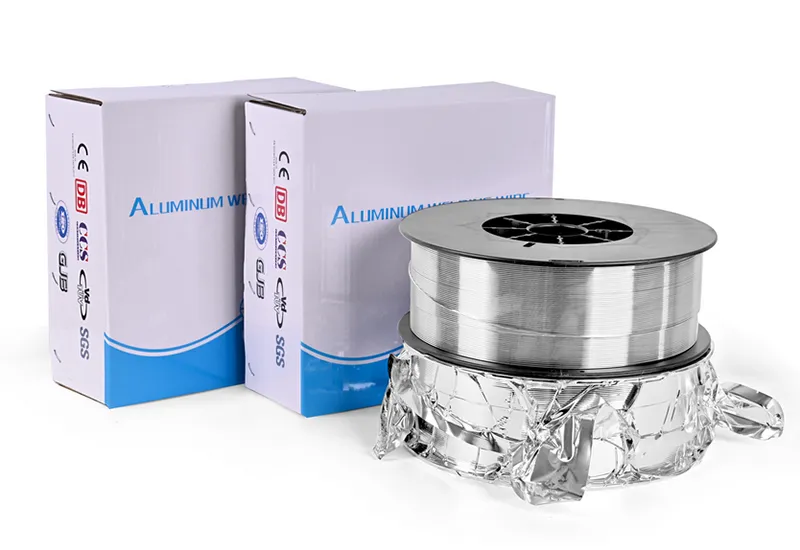

  • Spool: D300 (9kg), D270 (7kg), D200 (2kg), D100 (0.5kg)
Applications
  • Capable of handling demanding aluminium alloys with high magnesium content, offering strength and corrosion resistance
  • Commonly used for welding and repairing aluminium alloy components in military equipment
  • In the marine industry, it supports secure connections on vessels and offshore platforms exposed to harsh environments

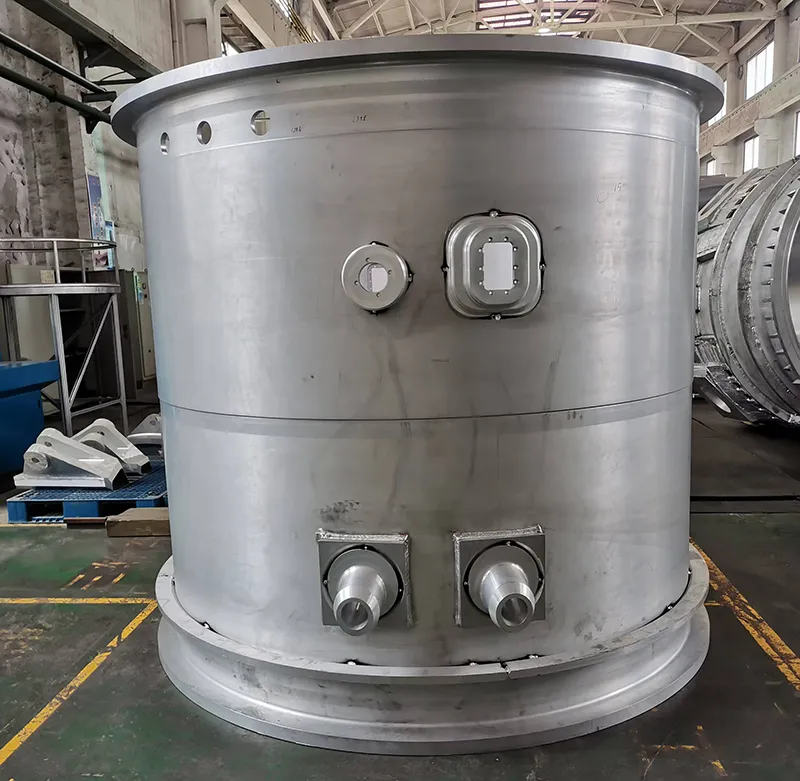

  • It's also a go-to choice for welding aluminium tanks in chemical processing facilities
Applications
Packaging
Packaging
  • MIG wire diameter: 0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm

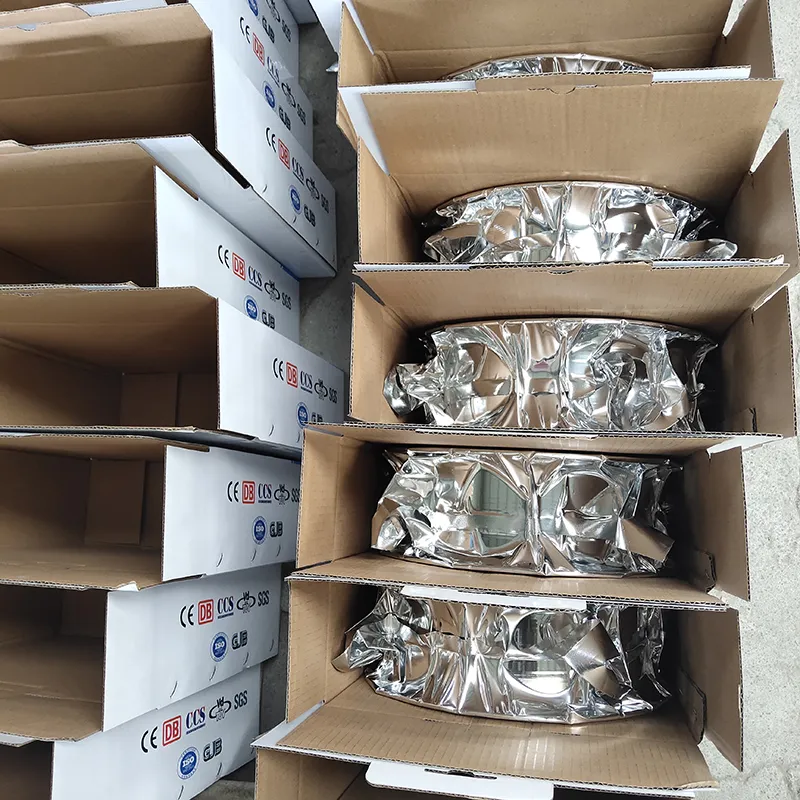

  • Package: D300 (9kg/spool), D270 (7kg/spool)
Packaging
  • MIG wire diameter: 1.2mm, 1.6mm

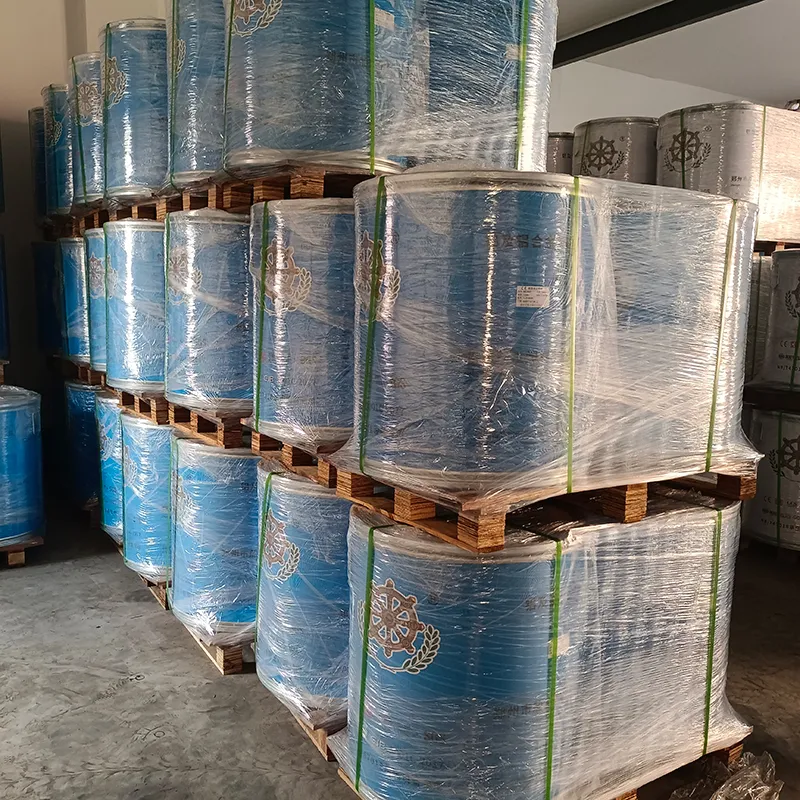

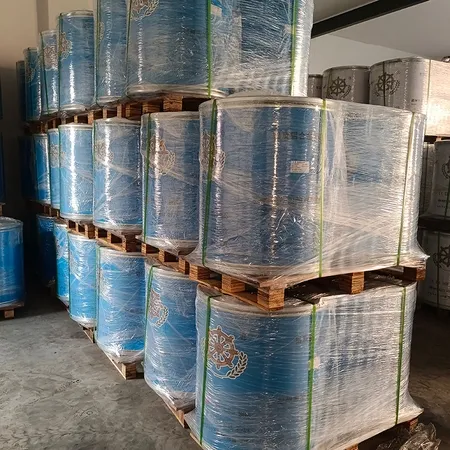

  • Package: drum D660 (100kg/drum)
Packaging

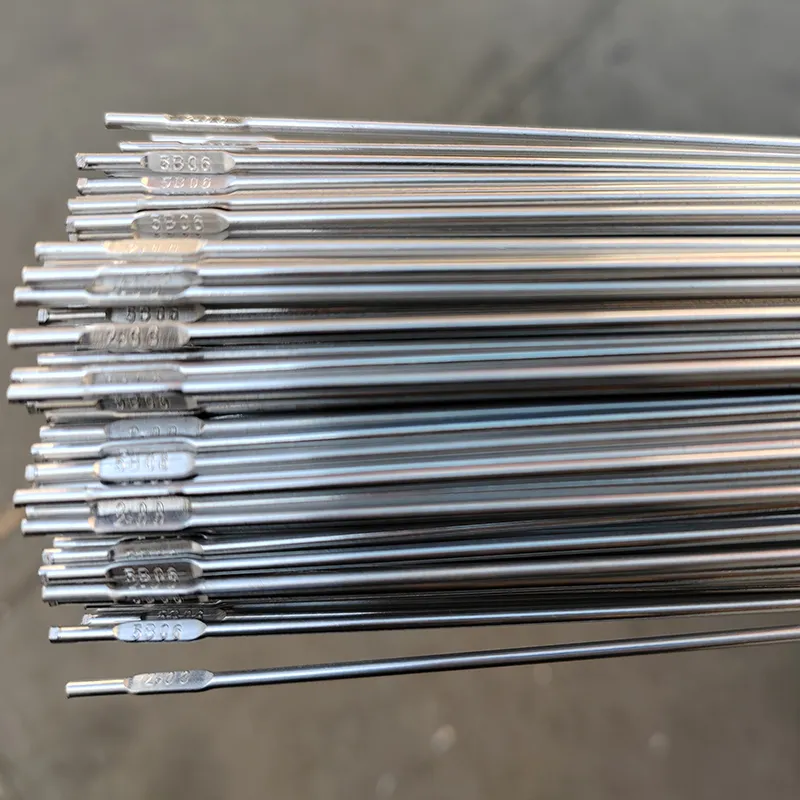

  • TIG wire diameter: 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm
  • Package: 1000mm length (10kg/box)
Packaging
  • TIG wire diameter: 1.6mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm

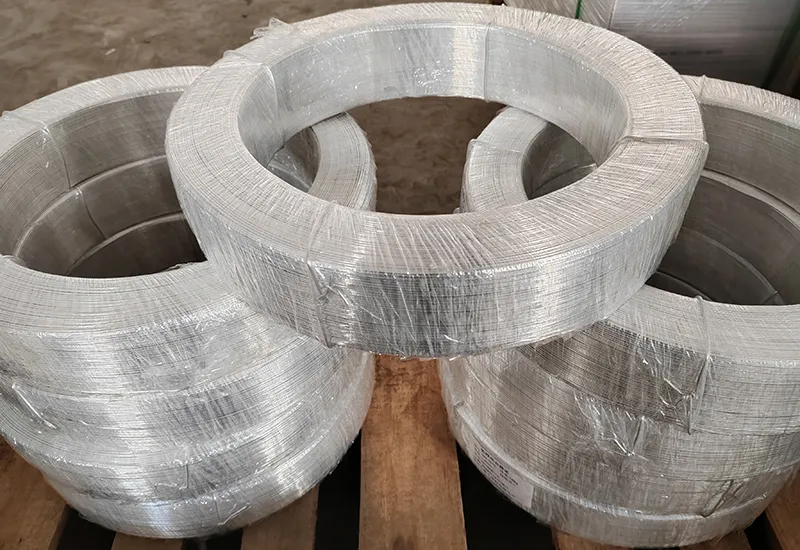

  • Coil inner diameter: D450mm, D300mm
  • Package: 10-17kg/coil
Recommended Welding Method

MIG and TIG welding are both compatible with this wire. For optimal results, use alternating current (AC) with pure argon shielding gas. Make sure to clean the weld area thoroughly before starting; moisture, dust, or oxidation on the base metal or wire can affect the welding results.

Recommended Welding Method
Why Choose Us
Why Choose Us
  • In-Depth Experience
    1. We’ve specialized in aluminium and titanium welding wire for over 35 years.
    2. Our manufacturing facility includes 6 processing workshops, over 60 production machines, and more than 50 production lines.
    3. We’ve supplied products and services to over 5,000 clients in 15 countries.
  • Premium Quality
    1. We are certified by ISO9001:2015 and GJB9001C-2017.
    2. The welding wires we offer are approved by CE, DB (German Railway), CCS (China Classification Society), VdTÜV (Germany), and SGS.
    3. A CNAS-accredited lab provides technical support and welding process evaluation.
  • On Time Delivery
    1. Customized packaging option are available with delivery lead times between 3 to 15 days
    2. We keep 280 tons of finished inventory and have an annual production capacity of 3,000 tons.
    3. Our technical team offers free welding consultations, tailored solutions, and 24-hour after-sales service.
