ZL114A (ZAlSi7Mg1A) Aluminium Welding Wire

Welding Consumables

ZL114A (ZAlSi7Mg1A) Aluminium Welding Wire

Aluminium-silicon filler metal for MIG and TIG welding of cast aluminium alloys
  • Chemical Designation: ZAlSi7Mg1A
  • Standard: GB/T 1173-2013
Request a Quote
Chemical Composition (%)
Si Mg Ti Al Be
6.5-7.5 0.45-0.75 0.10-0.20 Rest 0-0.07
Features
  • Developed for welding ZL114A cast aluminium alloys. This type of welding wire offers high strength, excellent flow characteristics, and strong corrosion resistance.
  • Commonly used in aerospace, automotive, and military applications where durable and precise joints are required.
  • With proper welding parameters and techniques, the welded joints can achieve mechanical performance comparable to the base metal.
  • Delivers stable casting behavior with no tendency for hot cracking, minimal linear shrinkage, and high gas-tightness.
  • Shows slight susceptibility to porosity and shrinkage cavities, but offers strong corrosion resistance and can be heat-treated for enhanced strength.
  • Naturally age-hardenable, offering a good balance of strength, ductility, and weldability, with moderate machinability.
Available Sizes
  • Welding wire: 0.8/1.0/1.2/1.6/2.0/2.4/3.0/3.2/4.0/5.0/6.0mm
  • Spool: D300 (9kg), D270 (7kg), D200 (2kg), D100 (0.5kg)
Applications

ZL114A aluminium welding wire has strong potential in the 3D printing industry, especially for demanding sectors like aerospace, automotive manufacturing, defense equipment, shipbuilding, and heavy machinery. It works well with technologies such as arc additive manufacturing and laser metal deposition, enabling the production of complex parts that require high strength, corrosion resistance, and reduced weight. Its performance makes it a valuable material in advanced metal fabrication.

Typical applications include:
  • Aerospace: Used for 3D printing structural parts, engine components, and fuel tanks for aircraft.
  • Automotive: Suitable for engine blocks, gearbox housings, chassis structures, and other lightweight parts.
  • Defense: Ideal for printing missile casings, rocket engine components, armored vehicle parts, and equipment supports.
  • Shipbuilding: Applied in fabricating structural hull elements, marine engine parts, and onboard piping systems.
  • Industrial machinery: Used to manufacture durable components such as gearboxes, pumps, valves, and custom mechanical parts.
Applications
Packaging

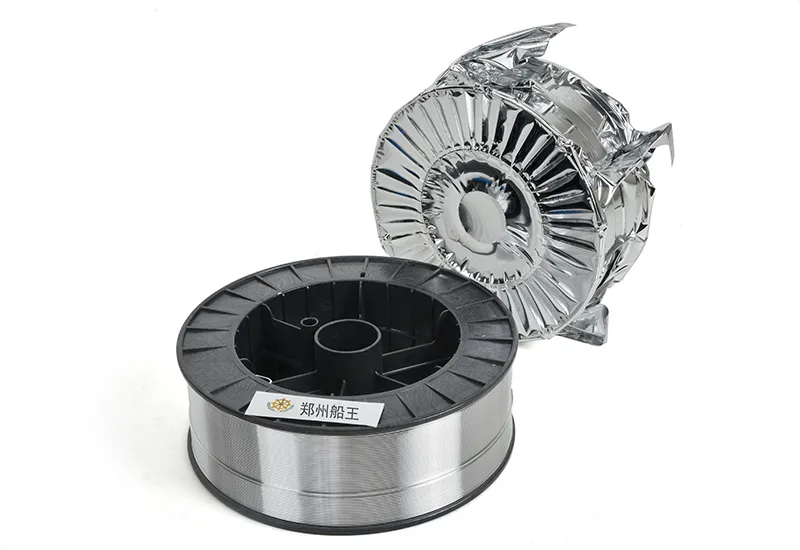

  • Spooled welding wire
    Spooled welding wire
  • Drum packaged welding wire
    Drum packaged welding wire
  • Straight welding wire
    Straight welding wire
  • Coiled welding wire
    Coiled welding wire
Packaging
  • MIG wire diameter: 0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm
  • Package: D300 (9kg/spool), D270 (7kg/spool)
Packaging
  • MIG wire diameter: 1.2mm, 1.6mm
  • Package: drum D660 (100kg/drum)
Packaging
  • TIG wire diameter: 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm
  • Package: 1000mm length (10kg/box)
Packaging
  • TIG wire diameter: 1.6mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm
  • Coil inner diameter: D450mm, D300mm
  • Package: 10-17kg/coil

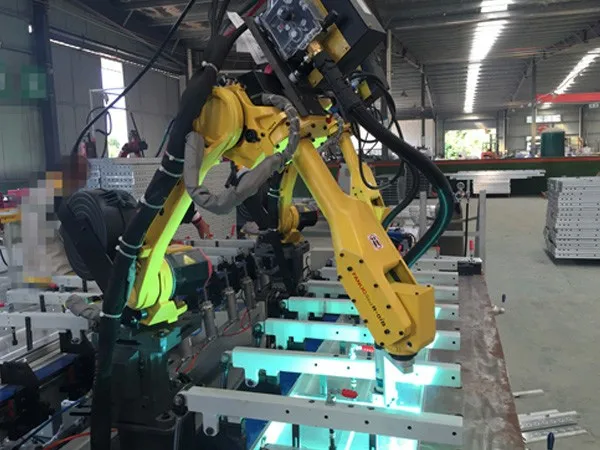

Recommended Welding Method

Use AC current with pure argon shielding gas to ensure optimal results when welding with this aluminium-silicon wire. It supports both MIG and TIG processes, provided the welding area is properly cleaned and kept dry to avoid porosity or surface defects.

Recommended Welding Method
Why Choose Us
Why Choose Us
  • In-Depth Experience
    1. We’ve specialized in aluminium and titanium welding wire for over 35 years.
    2. Our manufacturing facility includes 6 processing workshops, over 60 production machines, and more than 50 production lines.
    3. We’ve supplied products and services to over 5,000 clients in 15 countries.
  • Premium Quality
    1. We are certified by ISO9001:2015 and GJB9001C-2017.
    2. The welding wires we offer are approved by CE, DB (German Railway), CCS (China Classification Society), VdTÜV (Germany), and SGS.
    3. A CNAS-accredited lab provides technical support and welding process evaluation.
  • On Time Delivery
    1. Customized packaging option are available with delivery lead times between 3 to 15 days
    2. We keep 280 tons of finished inventory and have an annual production capacity of 3,000 tons.
    3. Our technical team offers free welding consultations, tailored solutions, and 24-hour after-sales service.
