ER 5A06 Aluminium Welding Wire | MIG and TIG Welding Wire

Welding Consumables

ER 5A06 (LF6) Aluminium Welding Wire

Aluminium-magnesium filler metal for MIG and TIG welding of aluminium-magnesium alloys

Chemical Designation: LF6
Standard: GB/T3190-2020

Request a Quote

Chemical Composition (%)

Si	Fe	Cu	Mn	Mg	Zn	Ti	Al	Be	Others
									Each	Total
≤0.40	≤0.40	≤0.10	0.50-0.8	5.8-6.8	≤0.20	0.02-0.10	Rest	0.0001-0.005	≤0.05	≤0.10

Features

Contains 5.8–6.8% magnesium, offering higher mechanical performance than standard aluminium-magnesium filler metals
Delivers enhanced corrosion resistance, which is suitable for long-term use in demanding and harsh environments
Ensures strong, durable joints for structural applications where strength and stability are critical

Available Sizes

Welding wire: 1.0/1.2/1.6/2.0/2.4/3.0/3.2/4.0/5.0/6.0mm
Spool: D300 (9kg), D270 (7kg)

Applications

Suitable for welding aluminium-magnesium alloys like 5A06, 5056, and 5083
Used in the assembly and repair of aluminium alloy components in military and defense systems
Ideal for joining aluminium structural parts in shipbuilding and offshore platforms
Commonly applied in welding aluminium storage tanks used in the chemical industry

Packaging

MIG wire diameter: 0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm

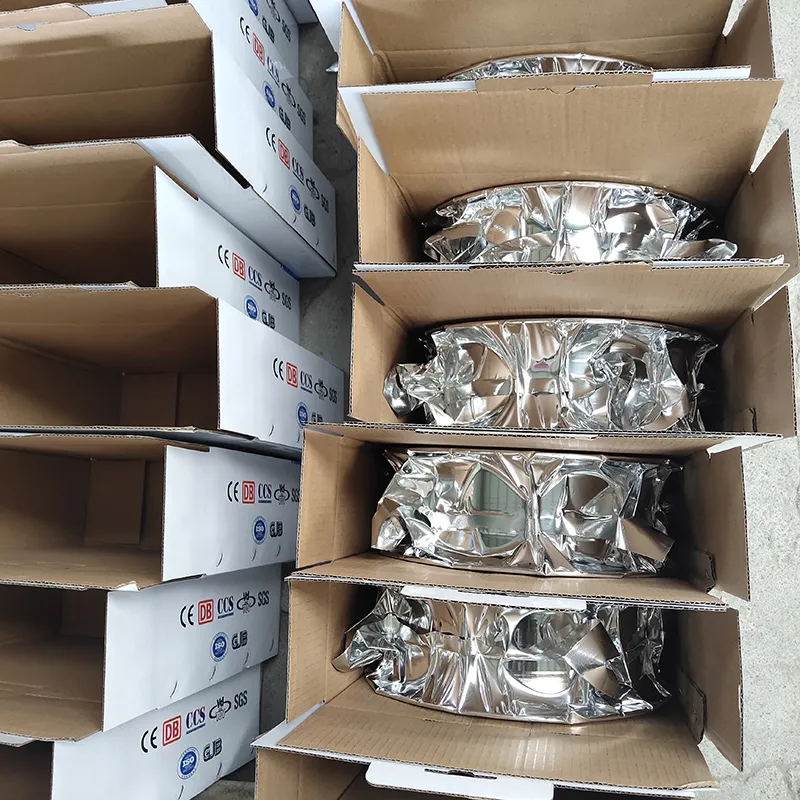

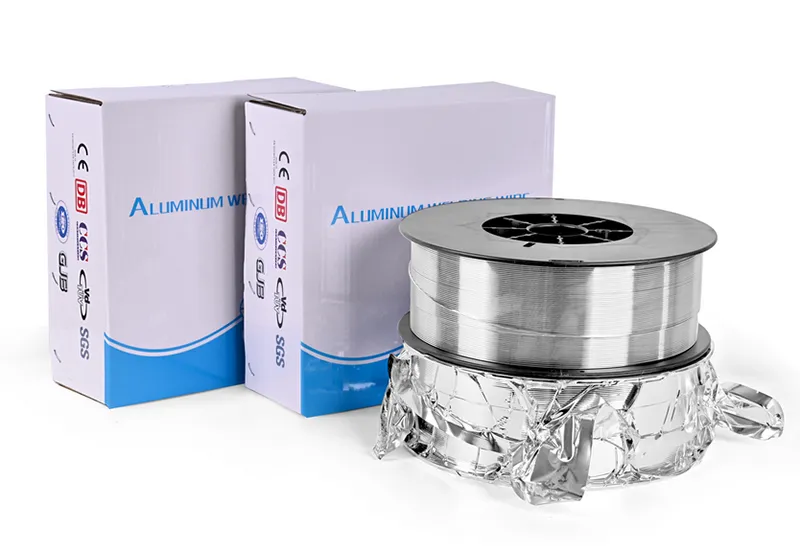

Package: D300 (9kg/spool), D270 (7kg/spool)

MIG wire diameter: 1.2mm, 1.6mm

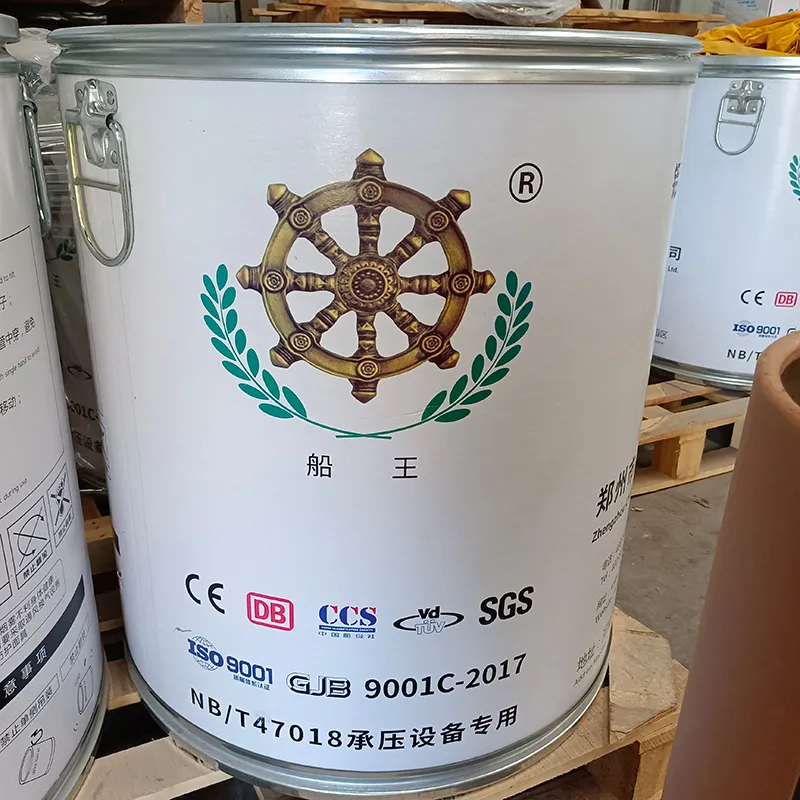

Package: drum D660 (100kg/drum)

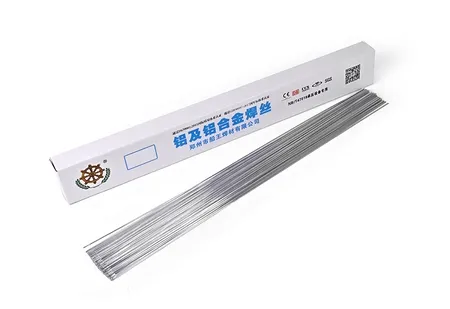

TIG wire diameter: 1.6mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm
Package: 1000mm length (10kg/box)

Welding wire diameter: 1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm

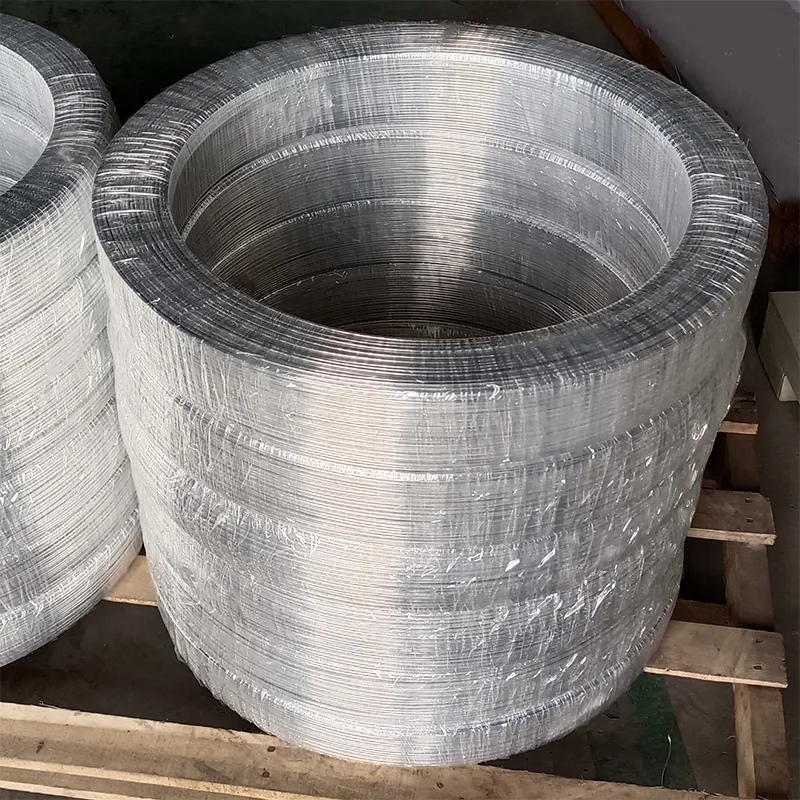

Coil inner diameter: D450mm, D300mm
Package: 10-17kg/coil

Recommended Welding Method

Use alternating current (AC) with pure argon as shielding gas for best performance. This type of welding wire is compatible with both MIG and TIG welding. Before starting with the welding process, make sure the workpiece is clean and dry, any moisture or contaminants on the base metal or the filler wire can affect weld quality.
