ER 3103 (AlMn1) Aluminium Welding Wire
ER 3103 (AlMn1) Aluminium Welding Wire ER 3103 (AlMn1) Aluminium Welding Wire

Welding Consumables

ER 3103 (AlMn1) Aluminium Welding Wire

Aluminium-manganese filler metal for MIG and TIG welding of aluminium alloyed with manganese
  • Chemical Designation: AlMn1
  • Standard: AWS A5.10, GB/T10858-2023
Request a Quote
Chemical Composition (%)
Si Fe Cu Mn Mg Cr Zn Ti+Zr Al Be Others
Each Total
≤0.50 ≤0.7 ≤0.10 0.9-1.5 ≤0.30 ≤0.10 ≤0.20 ≤0.10 Rest ≤0.0003 ≤0.05 ≤0.15
Mechanical Properties
  • Tensile Strength Rm (MPa): ≥90
  • Offset Yield (MPa): ≥35
  • Elongation (%): ≥24
Features
  • Offers excellent corrosion resistance and higher strength than pure aluminium, making it suitable for structural and formable parts
  • Produces clean, bright welds with stable arc performance and minimal spatter during both MIG and TIG processes
  • Provides outstanding plasticity and weldability, ensuring smooth operation and consistent results even in demanding welding environments
Available Sizes
  • Welding wire: 0.8/1.0/1.2/1.6/2.0/2.4/3.0/3.2/4.0/5.0/6.0mm

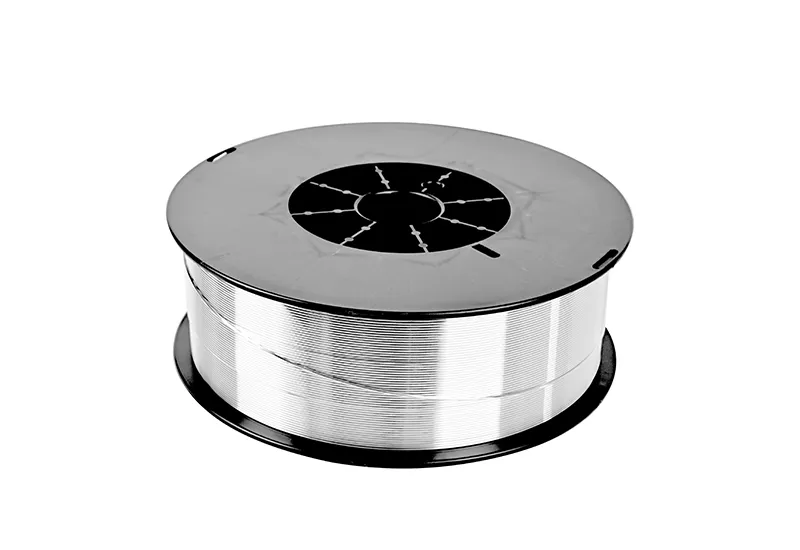

  • Spool: D300 (9kg), D270 (7kg), D200 (2kg), D100 (0.5kg)
Applications
  • Designed for welding components that operate in liquid or gas environments and require good plasticity and weldability
  • Commonly used for fuel tanks, gasoline or lubrication pipes, and a variety of liquid containers
  • Also suitable for lightweight parts made through deep drawing processes where high formability is needed
Applications
Packaging
Packaging

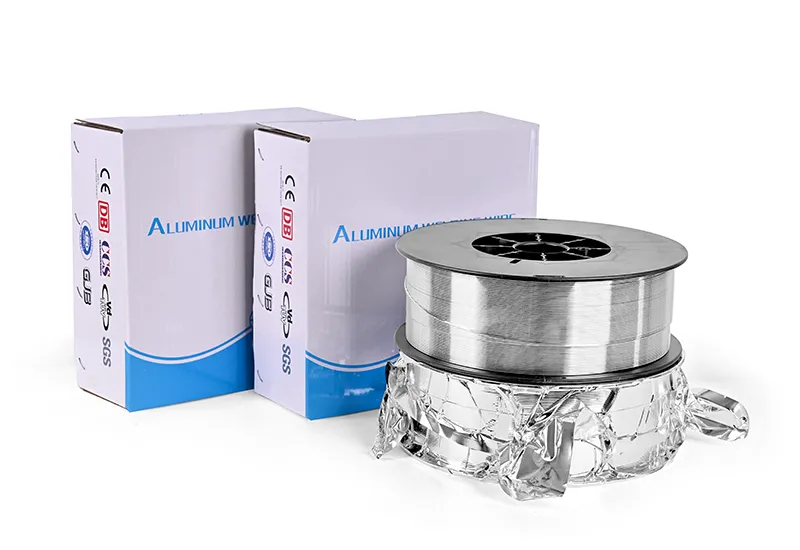

  • MIG wire diameter: 0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm
  • Package: D300 (9kg/spool), D270 (7kg/spool)
Packaging

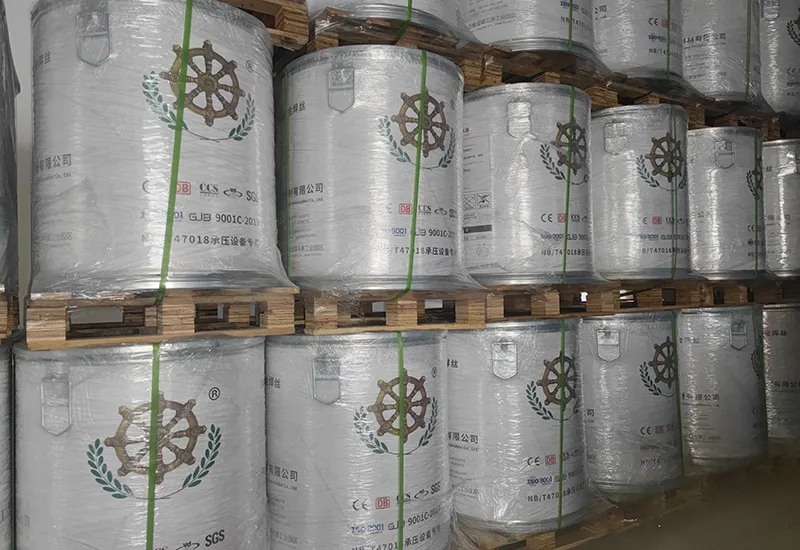

  • MIG wire diameter: 1.2mm, 1.6mm
  • Package: drum D660 (100kg/drum, 80kg/drum)
Packaging

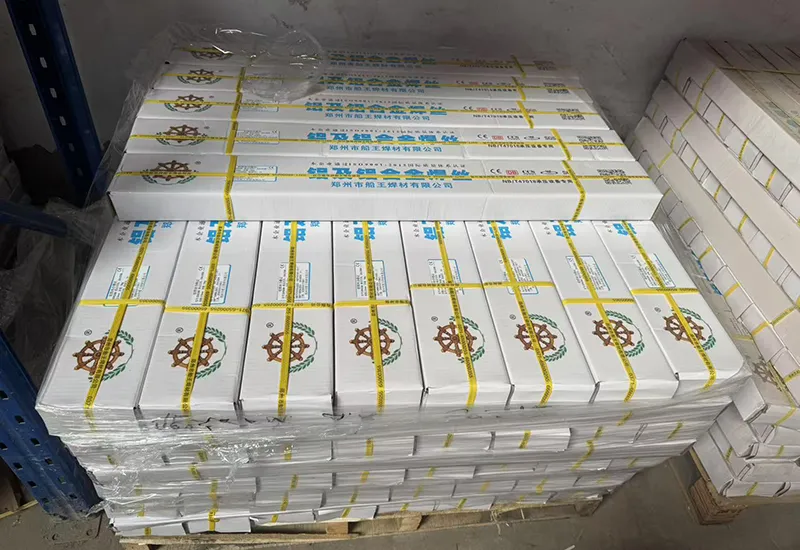

  • TIG wire diameter: 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm
  • Package: 1000mm length (10kg/box)
Packaging

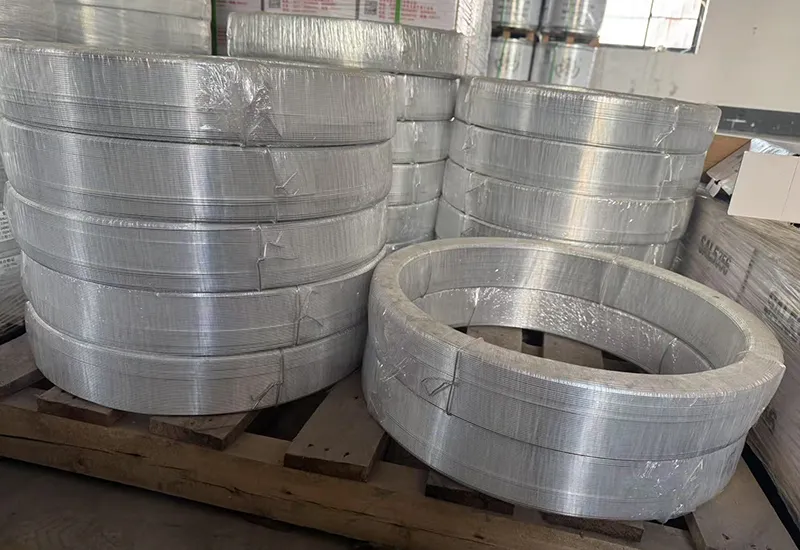

  • TIG wire diameter: 1.6mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm
  • Coil inner diameter: D450mm, D300mm
  • Package: 10-17kg/coil
Recommended Welding Method

This type of welding wire can be used with both MIG and TIG welding techniques. AC TIG welding with pure argon shielding gas is preferred for optimal arc stability. To ensure clean results, it's important to thoroughly clean the welding area before welding and keep both the workpiece and welding wire free from moisture or contaminants.

Recommended Welding Method
Why Choose Us
Why Choose Us
  • In-Depth Experience
    1. We’ve specialized in aluminium and titanium welding wire for over 35 years.
    2. Our manufacturing facility includes 6 processing workshops, over 60 production machines, and more than 50 production lines.
    3. We’ve supplied products and services to over 5,000 clients in 15 countries.
  • Premium Quality
    1. We are certified by ISO9001:2015 and GJB9001C-2017.
    2. The welding wires we offer are approved by CE, DB (German Railway), CCS (China Classification Society), VdTÜV (Germany), and SGS.
    3. A CNAS-accredited lab provides technical support and welding process evaluation.
  • On Time Delivery
    1. Customized packaging option are available with delivery lead times between 3 to 15 days
    2. We keep 280 tons of finished inventory and have an annual production capacity of 3,000 tons.
    3. Our technical team offers free welding consultations, tailored solutions, and 24-hour after-sales service.
