ER 2319 (AlCu6MnZrTi) Aluminium Welding Wire

Welding Consumables

ER 2319 (AlCu6MnZrTi) Aluminium Welding Wire

Aluminium-copper filler metal for MIG and TIG welding of 2000 series aluminium alloys
  • Chemical Designation: AlCu6MnZrTi
  • Standard: AWS A5.10, GB/T10858-2023
  • Tensile Strength: ≥240 MPa
Request a Quote
Chemical Composition (%)
Si Fe Cu Mn Mg Zn V Ti Zr Al Be Others
Each Total
≤0.20 ≤0.30 5.8-6.8 0.20-0.40 ≤0.02 ≤0.10 0.05-0.15 0.10-0.20 0.10-0.25 Rest ≤0.0003 ≤0.05 ≤0.15
Features
  • Suitable for welding 2xxx series aluminium alloys, especially when higher joint strength is required
  • Weld metal offers greater strength and ductility than fillers from the 4xxx series
  • Delivers strong resistance to stress corrosion cracking, even in applications involving elevated temperatures
Available Sizes

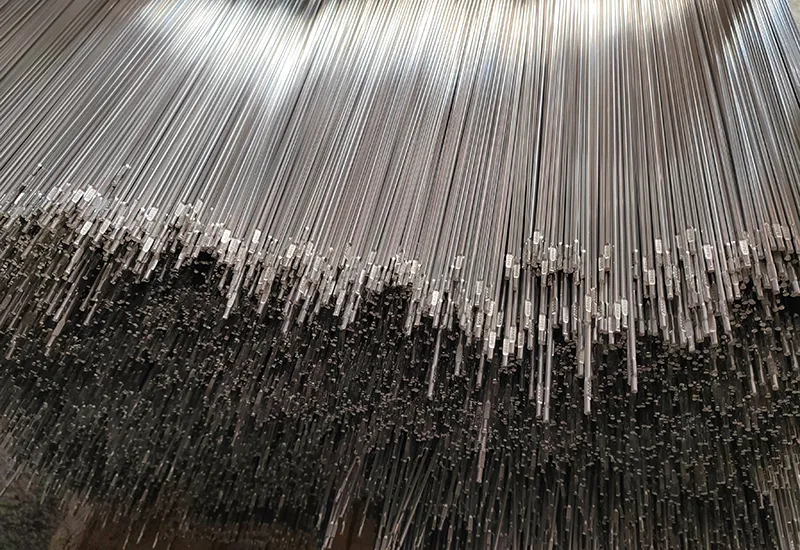

  • Welding wire: 0.8/1.0/1.2/1.6/2.0/2.4/3.0/3.2/4.0/5.0/6.0mm
  • Spool: D300 (9kg), D270 (7kg), D200 (2kg), D100 (0.5kg)

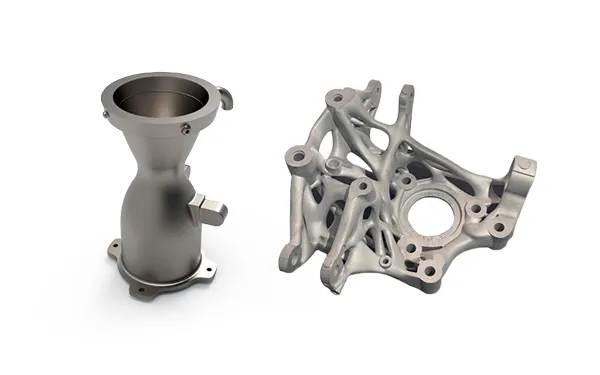

Applications

ER2319 is ideal for applications that require high strength and good corrosion resistance, including:

  • Aerospace: Used for welding structural components such as fuselage sections, wings, and fuel tanks
  • Automotive: Suitable for aluminium body panels, chassis parts, and engine components
  • Industrial equipment: Commonly used in chemical processing units and heat exchangers that demand both strength and durability
Applications

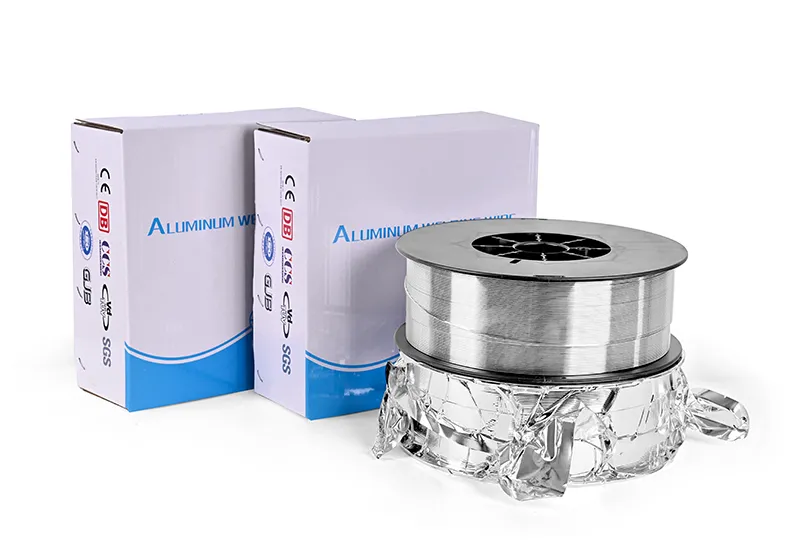

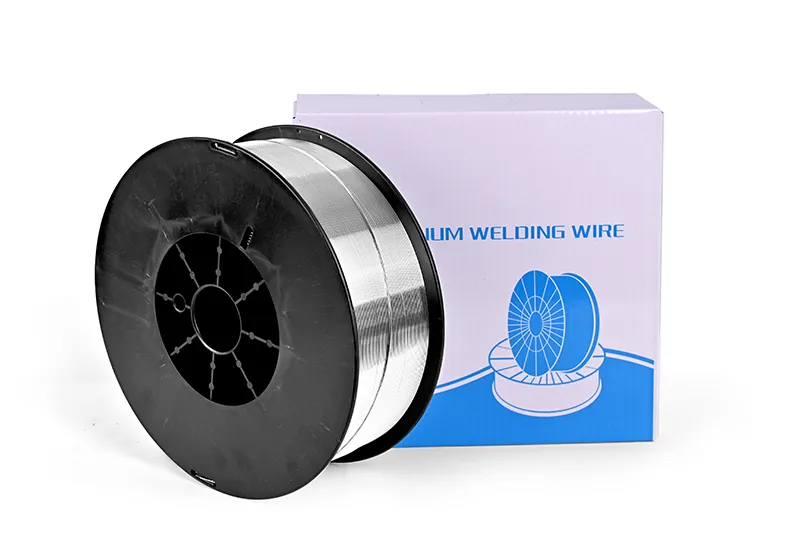

Packaging
Packaging
  • MIG wire diameter: 0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm
  • Package: D300 (9kg/spool), D270 (7kg/spool)

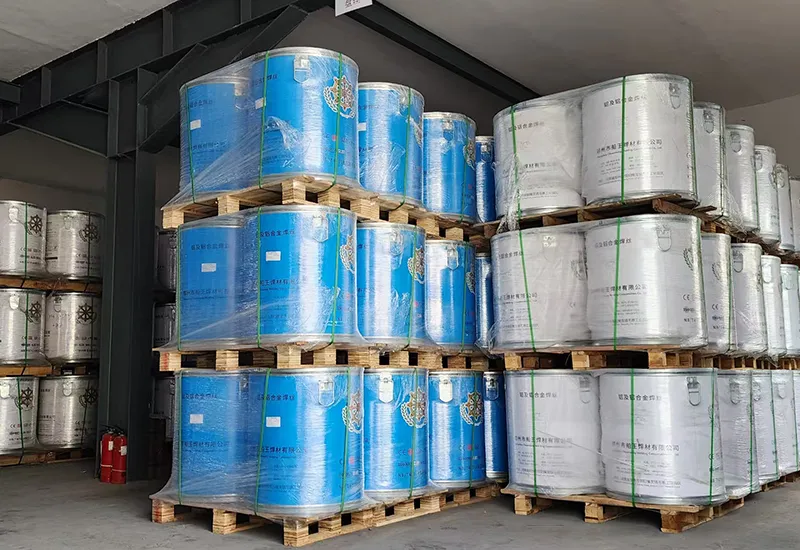

Packaging
  • MIG wire diameter: 1.2mm, 1.6mm
  • Package: drum D660 (100kg/drum)
Packaging
  • TIG wire diameter: 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm
  • Package: 1000mm length (10kg/box)

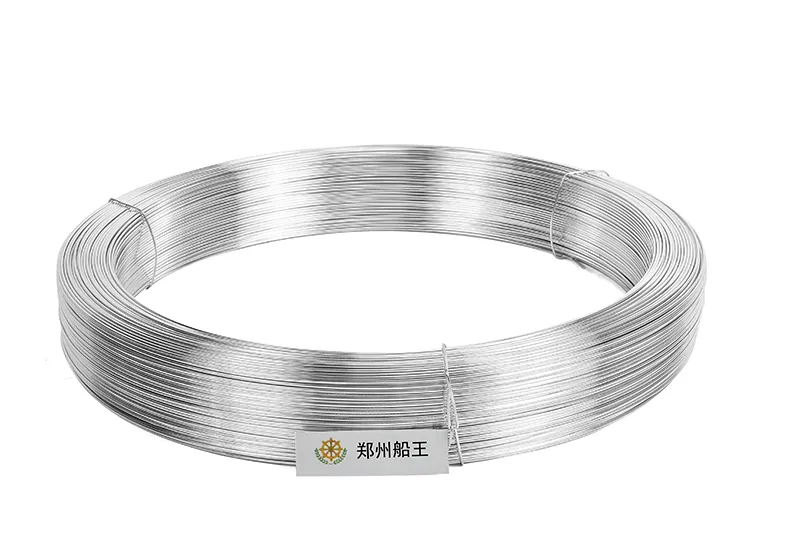

Packaging
  • TIG wire diameter: 1.6mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm
  • Coil inner diameter: D450mm, D300mm
  • Package: 10-17kg/coil
Recommended Welding Method

Suitable for both MIG and TIG welding processes. AC TIG welding with pure argon shielding gas is recommended to ensure arc stability and weld quality. Before starting, clean the part to be welded thoroughly to remove any oil, dust, or surface oxidation. Moisture on the base metal or filler wire should be avoided to prevent weld defects.
