ZL205A (ZAlCu5MnCdVA) Aluminium Welding Wire

Aluminium-copper filler metal for MIG and TIG welding and repairing of cast aluminium alloys

Chemical Designation: ZAlCu5MnCdVA
Standard: GB/T 1173-2013

Request a Quote

Chemical Composition (%)

Cu	Mn	Cd	V	Ti	Zr	Be	Al
4.6-5.3	0.3-0.5	0.15-0.25	0.05-0.3	0.15-0.35	0.15-0.25	0.005-0.6	Rest

Features

High-strength aluminium-copper wire developed for welding and repairing cast aluminium alloys
Alloyed with manganese, vanadium, and zirconium to enhance mechanical properties and performance at elevated temperatures
Offers improved weldability and casting repair results, ensuring stronger, more reliable joints in demanding applications

Available Sizes

Welding wire: 0.8/1.0/1.2/1.6/2.0/2.4/3.0/3.2/4.0/5.0/6.0mm

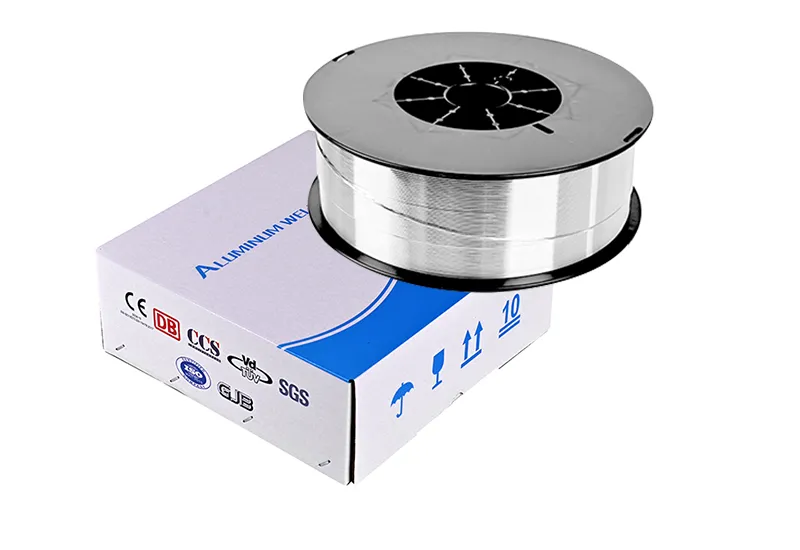

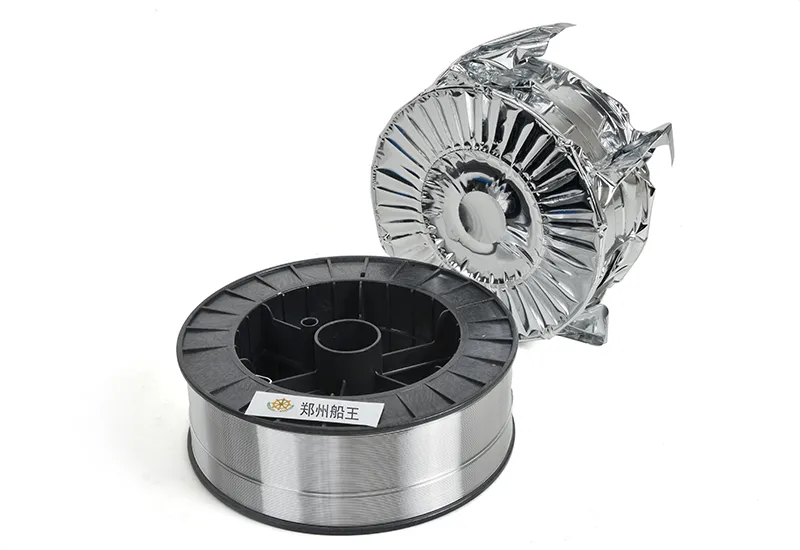

Spool: D300 (9kg), D270 (7kg), D200 (2kg), D100 (0.5kg)

Applications

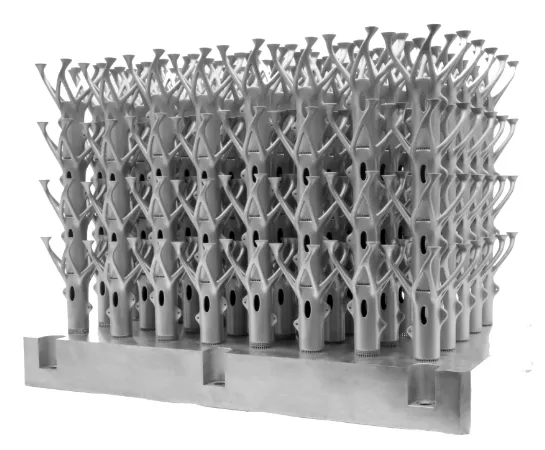

Commonly used in 3D printing of aluminium parts requiring structural strength
Suitable for welding sand-cast aluminium components exposed to high dynamic or static loads
Ideal for repairing or producing castings with simple geometries that demand reliable mechanical performance

Packaging

MIG wire diameter: 0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm
Package: D300 (9kg/spool), D270 (7kg/spool)

MIG wire diameter: 1.2mm, 1.6mm

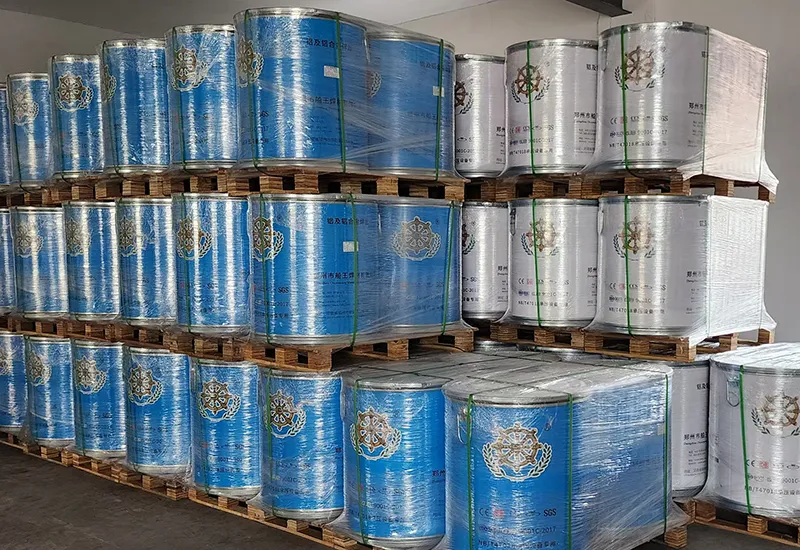

Package: drum D660 (100kg/drum)

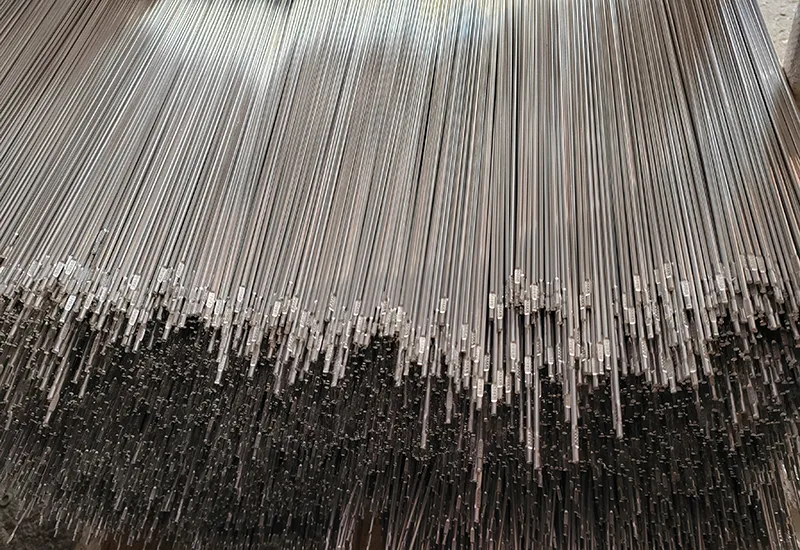

TIG wire diameter: 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm
Package: 1000mm length (10kg/box)

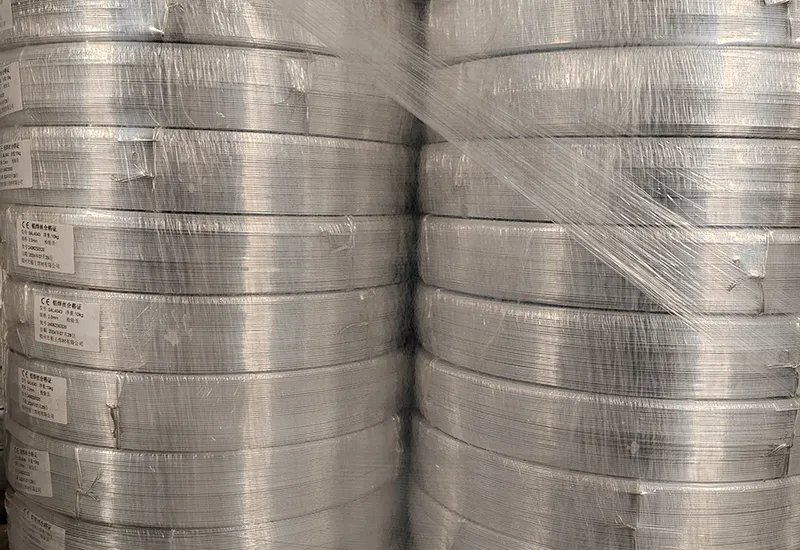

TIG wire diameter: 1.6mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm
Coil inner diameter: D450mm, D300mm
Package: 10-17kg/coil

Recommended Welding Method

Suitable for both MIG and TIG welding processes. AC TIG welding with pure argon shielding gas is recommended to ensure arc stability and weld quality. Before starting, clean the part to be welded thoroughly to remove any oil, dust, or surface oxidation. Moisture on the base metal or filler wire should be avoided to prevent weld defects.
