ER 7075 Aluminium Welding Wire

Welding Consumables

ER 7075 Aluminium Welding Wire

Aluminimum-zinc filler metal for MIG and TIG welding of 7075 aluminium alloy in the T6 temper
  • Standard: GB/T3190-2020
Request a Quote
Chemical Composition (%)
Si Fe Cu Mn Mg Cr Zn Ti Al Others
Each Total
≤0.40 ≤0.50 1.2-2.0 ≤0.3 2.1-2.9 0.18-0.28 5.1-6.1 ≤0.20 Rest ≤0.05 ≤0.15
Features
  • Designed for welding high-strength 7075 aluminium alloy, which is known for its excellent mechanical strength and hardness
  • Due to its high zinc content, welding this alloy presents challenges such as potential brittleness in the weld zone and reduced joint strength compared to the base metal
  • To avoid defects such cracking, it’s important to carefully control welding parameters such as heat input and travel speed
  • For best results, welding should be performed while the material is in the T6 temper condition to maintain structural strength and integrity
Available Sizes

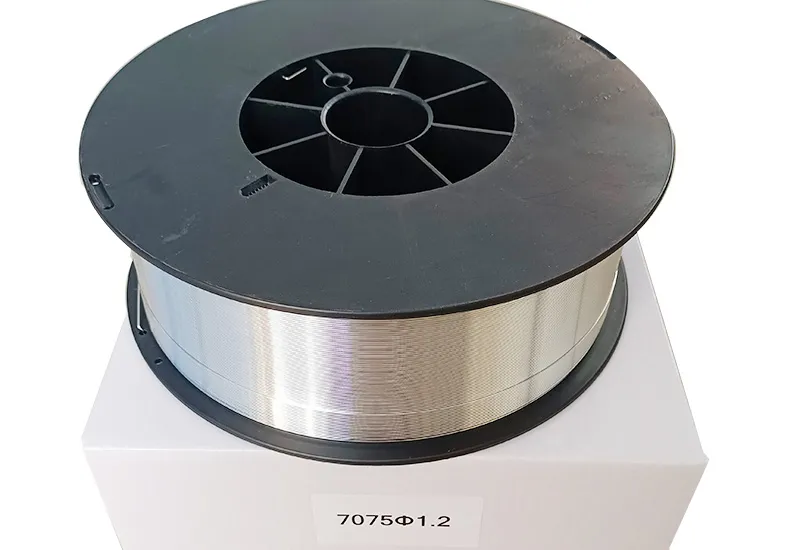

  • Welding wire: 1.2/1.6/2.0/2.4/3.0/3.2/4.0mm
  • Spool: D270 (7kg)

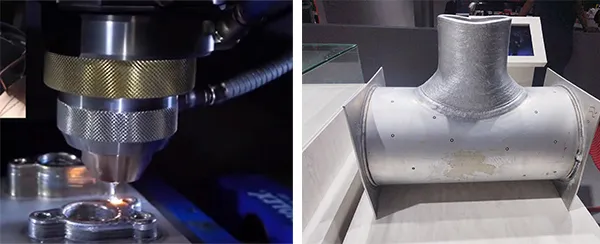

Applications
  • Commonly used in the aerospace industry for welding structural components and high-strength fittings
  • Suitable for mould and fixture fabrication, especially in setups requiring durable and lightweight structures
  • Ideal for producing parts that operate under high stress in mechanical systems.
  • Also used in specialized products such as high-end aluminium bicycle frames.
Applications
Packaging
Packaging

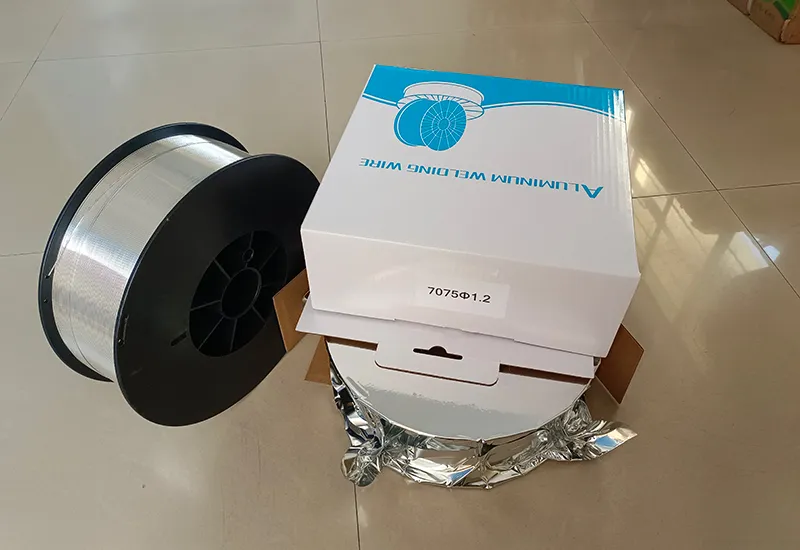

  • MIG wire diameter: 0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm
  • Package: D300 (9kg/spool), D270 (7kg/spool)
Packaging

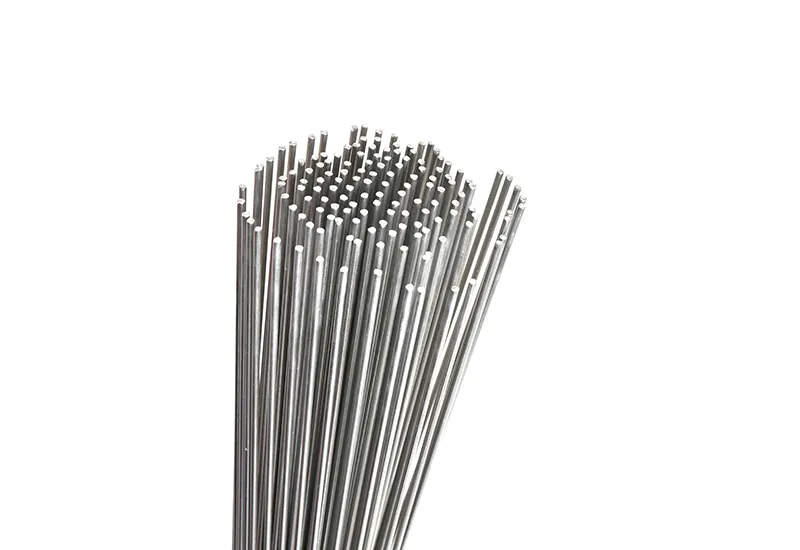

  • TIG wire diameter: 2.0mm, 2.4mm, 3.0mm, 4.0mm
  • Package: 1000mm length (10kg/box)
Packaging

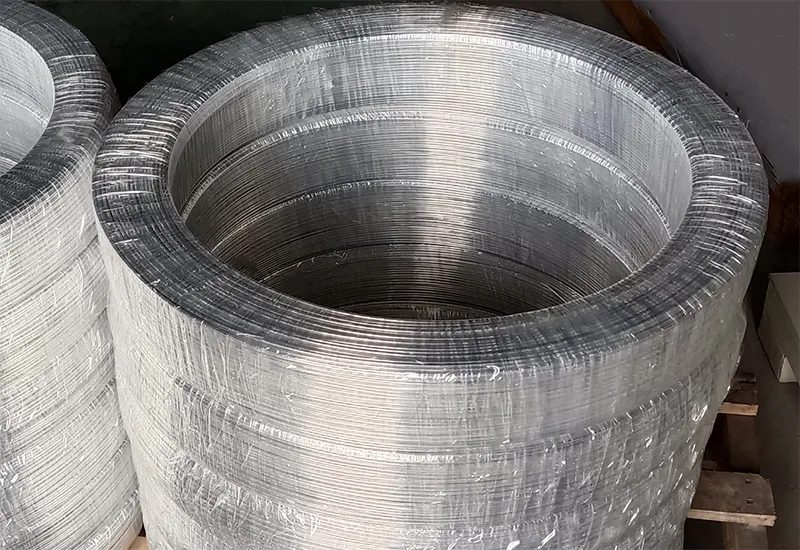

  • TIG wire diameter: 1.6mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm
  • Coil inner diameter: D450mm, D300mm
  • Package: 10-17kg/coil
Recommended Welding Method

ER 7075 welding wire is compatible with both MIG and TIG welding. It should be used with alternating current (AC) and pure argon as the shielding gas. Before welding, make sure the base material and welding wire are clean and dry to avoid porosity or defects during the welding

Recommended Welding Method
Why Choose Us
Why Choose Us
  • In-Depth Experience
    1. We’ve specialized in aluminium and titanium welding wire for over 35 years.
    2. Our manufacturing facility includes 6 processing workshops, over 60 production machines, and more than 50 production lines.
    3. We’ve supplied products and services to over 5,000 clients in 15 countries.
  • Premium Quality
    1. We are certified by ISO9001:2015 and GJB9001C-2017.
    2. The welding wires we offer are approved by CE, DB (German Railway), CCS (China Classification Society), VdTÜV (Germany), and SGS.
    3. A CNAS-accredited lab provides technical support and welding process evaluation.
  • On Time Delivery
    1. Customized packaging option are available with delivery lead times between 3 to 15 days
    2. We keep 280 tons of finished inventory and have an annual production capacity of 3,000 tons.
    3. Our technical team offers free welding consultations, tailored solutions, and 24-hour after-sales service.
