ER 3003 Aluminium Welding Wire
ER 3003 Aluminium Welding Wire ER 3003 Aluminium Welding Wire

Welding Consumables

ER 3003 Aluminium Welding Wire

Aluminium-manganese filler metal for MIG and TIG welding of pure aluminium and aluminium manganese alloys
  • Standard: GB/T3190-2020
Request a Quote
Chemical Composition (%)
Si Fe Cu Mn Zn Al Others
Each Total
≤0.6 ≤0.7 0.05-0.20 1.0-1.5 ≤0.1 Rest ≤0.05 ≤0.15
Features
  • Aluminium-manganese alloy wire widely used for welding applications that require good corrosion resistance and formability
  • Offers slightly higher strength than commercially pure aluminium, but cannot be strengthened by heat treatment
  • Its mechanical properties can be improved through cold working; high plasticity in annealed condition, moderate in semi-cold work, and low in full cold work
  • Commonly classified as a non-heat-treatable anti-corrosion alloy, though its machinability is relatively poor
Available Sizes
  • Welding wire: 0.8/1.0/1.2/1.6/2.0/2.4/3.0/3.2/4.0/5.0/6.0mm
  • Spool: D300 (9kg), D270 (7kg), D200 (2kg), D100 (0.5kg)
Applications
  • Ideal for welding components that require high plasticity and good weldability
  • Commonly used for low-stress load parts exposed to liquid or gas environments
  • Suitable for fuel tanks, oil and lubrication pipes, liquid containers, and other deep-drawn parts designed for light-duty performance
Applications
Packaging

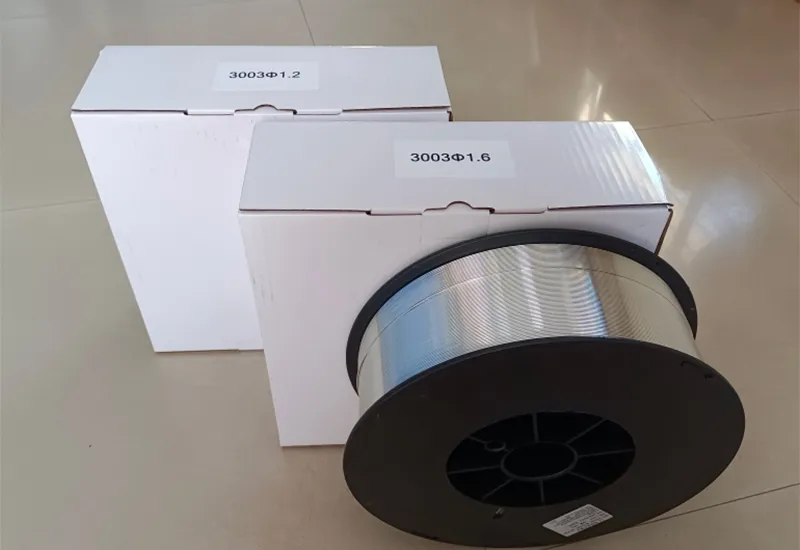

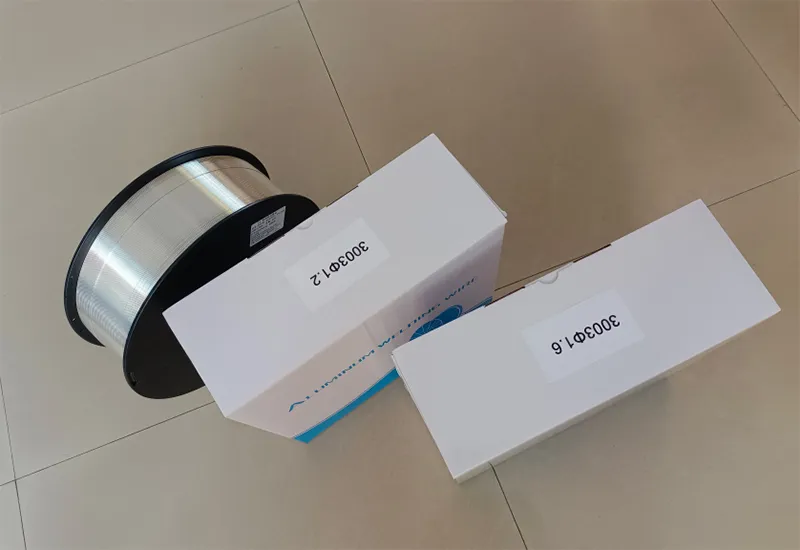

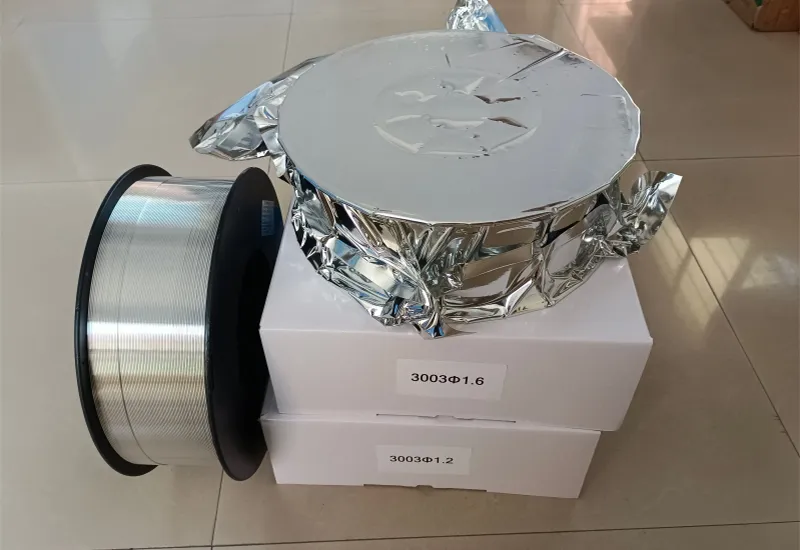

Packaging
  • MIG wire diameter: 0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm
  • Package: D300 (9kg/spool), D270 (7kg/spool)

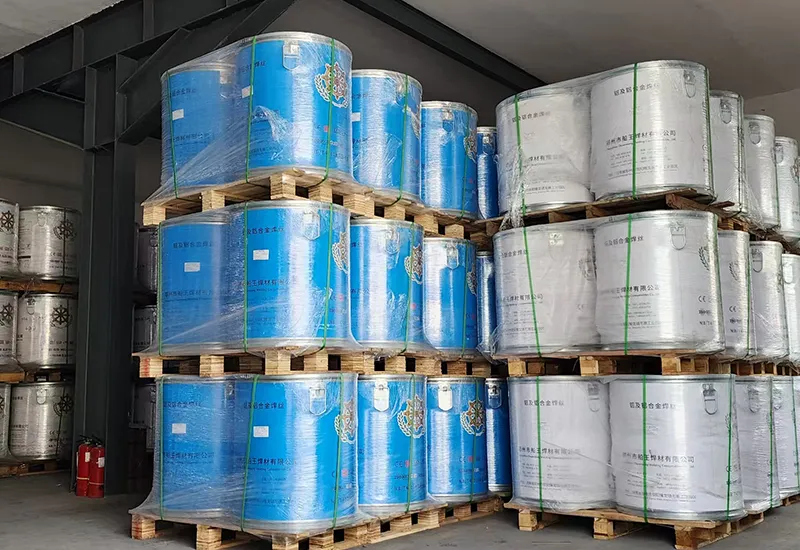

Packaging
  • MIG wire diameter: 1.2mm, 1.6mm
  • Package: drum D660 (100kg/drum)

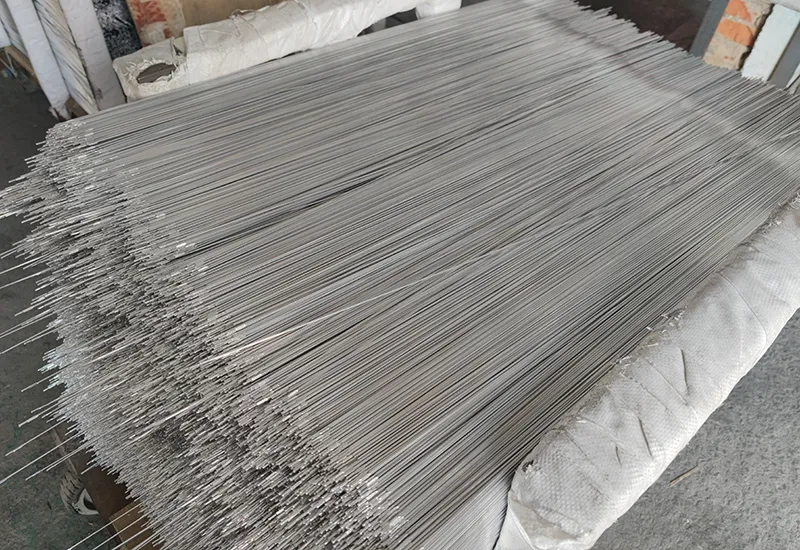

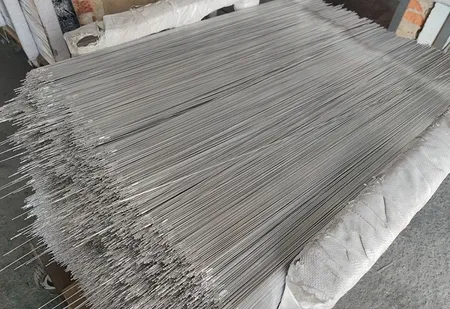

Packaging
  • TIG wire diameter: 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm
  • Package: 1000mm length (10kg/box)

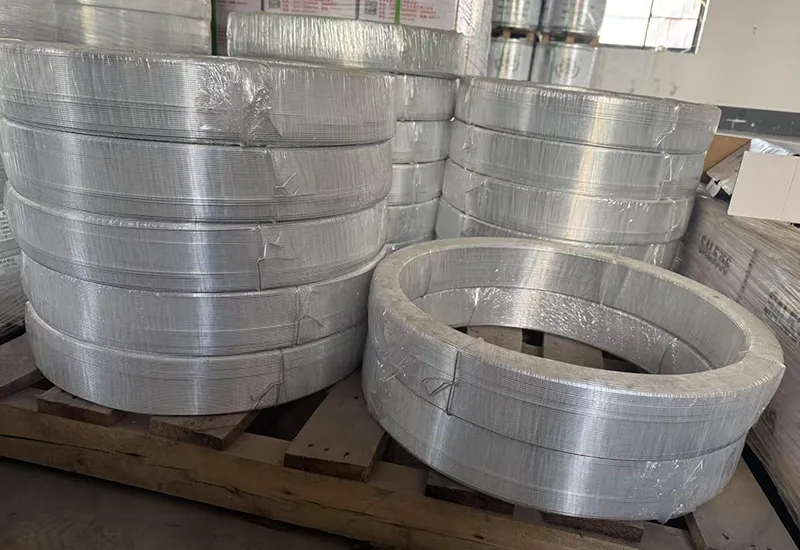

Packaging
  • TIG wire diameter: 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm
  • Coil inner diameter: D450mm, D300mm
  • Package: 10-17kg/coil
Recommended Welding Method

For best results, this wire performs well with both MIG and TIG welding processes. AC TIG welding with pure argon shielding gas is typically preferred to ensure clean, stable arcs and strong welds. It's important to remove any surface contaminants beforehand and avoid moisture on the workpiece or welding wire, as these can impact welding quality and consistency.

Recommended Welding Method
Why Choose Us
Why Choose Us
  • In-Depth Experience
    1. We’ve specialized in aluminium and titanium welding wire for over 35 years.
    2. Our manufacturing facility includes 6 processing workshops, over 60 production machines, and more than 50 production lines.
    3. We’ve supplied products and services to over 5,000 clients in 15 countries.
  • Premium Quality
    1. We are certified by ISO9001:2015 and GJB9001C-2017.
    2. The welding wires we offer are approved by CE, DB (German Railway), CCS (China Classification Society), VdTÜV (Germany), and SGS.
    3. A CNAS-accredited lab provides technical support and welding process evaluation.
  • On Time Delivery
    1. Customized packaging option are available with delivery lead times between 3 to 15 days
    2. We keep 280 tons of finished inventory and have an annual production capacity of 3,000 tons.
    3. Our technical team offers free welding consultations, tailored solutions, and 24-hour after-sales service.
